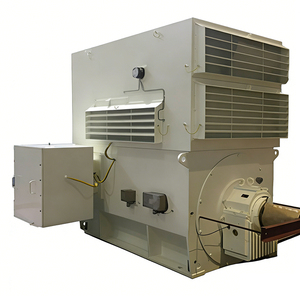

In continuous high-demand industrial processing, power generation, municipal waterworks, and mining operations, electric motor failure directly translates to catastrophic downtime costs. Weather Protected Type II (WPII / WP-II) electric motors represent the apex of open-ventilated high-voltage motor design, specifically engineered for outdoor installations exposed to blowing rain, dust, moisture, and high thermal stress.
According to IEEE 841, NEMA MG-1 (Section 1.25.8), and IEC standards, a true WPII enclosure features specialized intake and discharge ventilating passages designed so that high-velocity air and airborne particles cannot directly enter the internal electrical parts of the motor. The structural ventilation path forces intake air through at least three 90-degree abrupt changes in direction while maintaining an intake air velocity below 300 feet per minute (1.52 m/s). This drastic speed reduction drops heavy dust particles, water droplets, and debris prior to reaching the active stator and rotor components.
Information Gain Benchmark: Unlike standard IP23 drip-proof motors, Chinese WPII electric motors combine top-mounted air-baffle hoods, removable washable mesh filters (or stainless steel inertia separators), and Vacuum Pressure Impregnation (VPI) Class H insulation to achieve an expected operational lifespan exceeding 30 years under aggressive ambient conditions.
Selecting the appropriate motor cooling and enclosure type is critical to optimizing Total Cost of Ownership (TCO) and capital expenditure (CAPEX). Below is an engineering trade-off comparison between WPII and alternative enclosure structures for high-power industrial induction motors:
| Motor Enclosure Type | NEMA / IEC Code | Protection Rating | Cooling Method | Relative Cost Factor | Primary Industrial Applications |
|---|---|---|---|---|---|
| Weather Protected II (WPII) | WP-II / IC01 | IP23 / IP24 | Direct Ambient Air via Baffle Hood | 1.00 (Baseline) | Large Water Pumps, Mining Compressors, Power Plant Fans |
| Totally Enclosed Fan Cooled (TEFC) | TEFC / IC411 | IP55 / IP56 | External Frame Surface Fan Air | 1.25 – 1.40 | Chemical Processing, Refinery Pumps, Conveyors |
| Totally Enclosed Air-to-Air (CACA) | TEAAC / IC611 | IP55 / IP56 | Internal/External Air-to-Air Heat Exchanger | 1.45 – 1.65 | Offshore Platforms, Heavy Cement Mills, Harsh Dusty Mines |
| Totally Enclosed Water-to-Air (CACW) | TEWAC / IC81W | IP55 | Internal Closed-Loop Water Heat Exchanger | 1.60 – 1.85 | Marine Propulsion, Cleanrooms, High-Power Turbo Compressors |
Leading Chinese electric motor manufacturers have transitioned from low-cost casting to world-class precision engineering, backed by European heritage test beds, advanced VPI insulation systems, and strict ISO/IEC compliance.
Statos undergo multi-stage Vacuum Pressure Impregnation (VPI) utilizing solventless epoxy resins. This guarantees void-free insulation, exceptional dielectric strength, and complete moisture resistance even under 100% relative humidity.
Custom shaft dimensions, foot mounting centers, and terminal box locations allow our WPII motors to replace legacy motors (Westinghouse, Parsons Peebles, General Electric, Siemens) without civil foundation rebuilds.
State-of-the-art high voltage testing laboratories perform direct load testing, back-to-back load testing, temperature rise verification, core flux testing, and dynamic vibration analysis up to 13.8kV / 20MVA.
Rotors are dynamically balanced to ISO 1940 Grade G1.0/G2.5 precision. Solid copper/copper-alloy rotor bars ensure high thermal capacity and eliminate rotor bar cracking during frequent direct-on-line (DOL) starts.
Pre-installed dual-element PT100 RTDs for bearings and stator windings, SPM vibration monitoring studs, and space heaters prevent condensation and enable direct integration with modern SCADA/IoT systems.
Fully compliant with NEMA MG-1, IEEE 841, IEC 60034, CSA, CE, and ATEX/IECEx standards. Supported by global field commissioning teams and rapid spare parts logistics networks.
The global high-voltage motor market is undergoing a seismic shift driven by industrial decarbonization, soaring energy tariffs, and digital transformation. Buyers purchasing WPII electric motors must position their procurement strategies to align with these emerging trends:
When evaluating a Chinese manufacturer or exporter for WPII electric motors, global procurement managers should follow this comprehensive audit procedure to ensure technical compliance and risk mitigation:
Verify rated voltage tolerance (±10%), frequency tolerance (±5%), lock-rotor current ratio (≤ 650% of FLC), thermal margin (Class F temperature rise with Class H insulation), and power factor performance across 50%, 75%, and 100% load points.
Confirm fabricated steel plate frame thickness, anti-corrosion coating specification (C4/C5-M marine paint grade), stainless steel hardware, bearing L10h life rating (> 100,000 hours for direct-coupled setups), and IP rating verification.
Insist on full routine and type testing according to IEC 60034-2-1 or IEEE 112 Method B. Request full vibration spectrum analysis (unfiltered and FFT), partial discharge testing for >6.6kV windings, and sound pressure level test results.
Detailed answers to common technical, commercial, and operational questions regarding China-manufactured WPII high voltage electric motors.
Need a tailored WPII high-voltage motor solution or drop-in replacement design? Contact our engineering team today for technical support, CAD drawings, and factory direct price quotes.
