Precision-engineered Totally Enclosed Fan Cooled (TEFC) and Totally Enclosed Non-Ventilated (TENV) three-phase induction motors designed for heavy duty, hazardous areas, and severe washdown environments.
Totally Enclosed Fan Cooled (TEFC) architecture isolates internal rotor-stator assemblies from external ambient contamination. Utilizing IP55, IP66, and IP69K sealed housings, OEM TEFC units prevent particulate ingress, moisture corrosion, and thermal overload across severe duty applications.
Modern global procurement mandates strict compliance with IEC 60034-30-1 and NEMA Premium energy standards. Advanced stator lamination geometry combined with high-purity electrolytic copper windings lowers total cost of ownership (TCO) through 96%+ electrical conversion efficiency.
OEM factories deliver complete mechanical interchangeability. From C-face and D-flange configurations (IEC 63 to 355 frames; NEMA 56 to 449T frames) to custom shaft extensions, tropical insulation coatings, and dual-voltage terminal configurations for worldwide export.
| Enclosure Metric | TEFC (Totally Enclosed Fan Cooled) | TENV (Non-Ventilated) | ODP (Open Drip Proof) | CACA / CACW (Air-to-Air/Water) |
|---|---|---|---|---|
| Ingress Protection (IP) | IP55 / IP56 / IP66 | IP65 / IP69K Hygienic | IP22 / IP23 Standard | IP55 to IP65 High Power |
| Cooling Mechanism | External Shaft-Driven Fan | Convection & Radiation | Internal Flow Vent | Closed Loop Heat Exchanger |
| Environmental Suitability | Dust, Chemical, Outdoor, Mining | Washdown Food & Pharma | Clean Indoor Environment | Extreme Heavy Power / Hazardous |
| Typical Power Range | 0.18 kW to 1,500 kW | 0.12 kW to 15 kW | 0.75 kW to 400 kW | 250 kW to 20,000 kW+ |
| Maintenance Profile | Low (Sealed Bearing Cavity) | Ultra-Low (No Moving Fan) | Moderate (Air Filter Checks) | Routine Exchanger Inspections |
Combining over a century of British rotating equipment heritage (TDC Parsons Peebles pedigree) with modern large-scale OEM export production lines. We build robust drive solutions certified for world-class reliability.

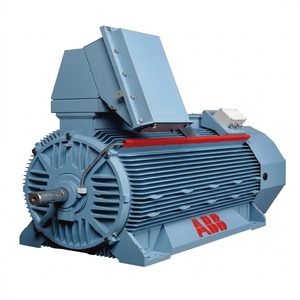

Our OEM manufacturing facilities specialize in custom TEFC motors engineered for severe duty, explosive atmospheres, and high-voltage power generation infrastructure. Certified across global standards, every unit undergoes rigorous thermal and insulation testing.
Verification and empirical proof are key to gaining trust in critical industrial infrastructure. Our modern test bays are equipped to handle comprehensive load and diagnostic regimes prior to international export delivery.
Quantifiable performance metrics backing our status as a premium TEFC electric motor manufacturer and exporter.
Global Quality Certifications & Standards Compliance
As global industrial energy policies tighten and decarbonization targets loom, motor procurement is experiencing strategic shifts. OEM factories are innovating to stay ahead of efficiency mandates and smart digital factory requirements.

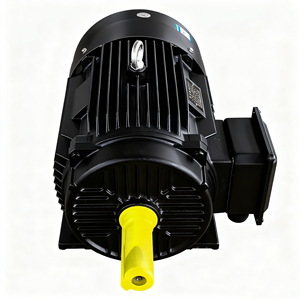

Regulatory frameworks across the EU, North America, and Asia-Pacific have upgraded minimum energy performance standards (MEPS) from IE2 to IE3 for standard induction motors. Procurement strategies for 2026–2030 focus heavily on IE4 Super-Premium asynchronous motors and IE5 Permanent Magnet Synchronous Motors (PMSM) to achieve up to 30% reduction in electrical losses. Custom OEM factories play a critical role in providing drop-in frame dimensions that house higher copper content and thinner cold-rolled silicon steel laminations without altering machine bedplates.
Unplanned downtime in heavy processing industries (petrochemical, paper, mining) can cost thousands of dollars per hour. OEM buyers now demand TEFC motors pre-equipped with smart wireless sensor pockets and embedded RTD (Resistance Temperature Detector) networks. Integrated tri-axial vibration sensors, bearing temperature probes, and stator flux monitors feed real-time diagnostic data directly into cloud-based Predictive Maintenance (PdM) platforms, allowing operators to detect bearing wear or rotor imbalance long before catastrophic failure occurs.
Standard IP55 TEFC motors are often insufficient for food processing, marine, and chemical applications. Supply chains are gravitating toward specialized OEM TENV and TEFC motors constructed from 304/316 grade stainless steel or heavy cast iron with multi-coat epoxy resin paint systems (C5-M marine grade). These units withstand daily high-pressure caustic washdowns (up to 100 bar at 80°C) and acidic atmospheres without paint flaking, shaft rust, or moisture ingress into terminal boxes.
With the widespread adoption of VFDs for energy optimization in pumps, fans, and compressors, motor windings are subjected to severe dv/dt voltage spikes and micro-arcs. Future-proof procurement requires OEM TEFC motors built with Inverter-Spike-Resistant magnet wire (NEMA MG1 Part 31 compliance), insulated non-drive end bearings to eliminate shaft currents, and grounding brushes. Factories supplying pre-configured inverter-duty TEFC motors are winning major industrial supply contracts.
Expert answers to essential technical, compliance, and custom engineering queries for B2B buyers, plant engineers, and machinery exporters.
TEFC (Totally Enclosed Fan Cooled) motors utilize an external, shaft-driven cooling fan covered by a protective fan shroud to blow ambient air across the outer ribbed frame fins for heat dissipation. TENV (Totally Enclosed Non-Ventilated) motors do not have an external fan and rely strictly on natural convection and radiation for cooling. TENV motors are generally used in low-horsepower applications, cleanroom/washdown environments where external fans would trap contaminants, or where external air flow is restricted.

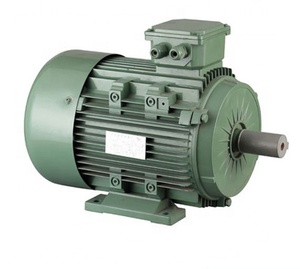

IEC frames are measured in millimeters based on shaft center height (e.g., IEC 112M means a shaft height of 112 mm). NEMA frames express shaft center height in sixteenths of an inch (e.g., NEMA 145T has a shaft height of 14/4 = 3.5 inches). While shaft diameters, keyways, and mounting hole spacings differ between IEC and NEMA standards, custom OEM factories can manufacture cross-standard hybrid motors—such as an IEC electrical winding built into a NEMA mechanical frame or vice versa—to simplify global machine export.
For reliable VFD operation, custom TEFC motors should be specified with Class H copper magnet wire, Corona-Resistant insulation varnish, and a 1.15 Service Factor. When operating at reduced speeds (below 50% rated RPM), the shaft-driven fan’s cooling airflow decreases significantly. For constant-torque applications running at low speeds, OEM factories can equip the TEFC motor with a separately powered forced-cooling blower (TEBC - Totally Enclosed Blower Cooled) and insulated bearings to prevent electrical fluting damage.

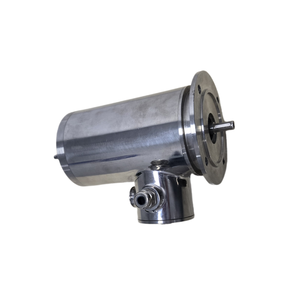

IP55 provides complete protection against harmful dust deposits and low-pressure water jets from any angle, making it the industry baseline for standard outdoor TEFC motors. IP66 offers total protection against heavy seas and powerful water jets, ideal for marine decks and mining. IP69K is specifically engineered for high-pressure, high-temperature washdowns (up to 1450 PSI at 80°C) common in food, beverage, and pharmaceutical facilities, typically achieved using smooth 304/316 stainless steel housings and double-lip Viton seals.
Yes. Our factory customizes TEFC motors for hazardous environments certified under ATEX and IECEx directives. Depending on the gas/dust zone, we provide Ex ec (Increased Safety / Non-Sparking Zone 2), Ex eb (Increased Safety Zone 1), Ex db (Flameproof Zone 1), and Ex p (Purged and Pressurized). Hazardous area TEFC motors feature flamepaths, specialized explosion-proof terminal boxes, anti-spark external fans, and certified thermistor protection to prevent surface temperatures from exceeding auto-ignition thresholds.
OEM customization includes single or double shaft extensions, special keyway dimensions, tapered shafts, threaded ends, and stainless steel shafting (4140, 304, 316, Duplex). Flange mounting options encompass standard B5 (D-flange), B14 (C-face), NEMA C-face, and custom bolt-circle diameters. Terminal boxes can be rotated in 90° increments, fabricated in oversized cast iron or stainless steel, and fitted with auxiliary terminal strips for space heaters and thermistors.
S1 duty represents continuous operation under constant load, allowing the motor to reach thermal equilibrium—this is the baseline for standard TEFC ratings. Short-time (S2) or intermittent periodic duties (S3 to S8) involve high starting current pulses, frequent reversals, or variable loads that increase winding heating. OEM factories adjust core length, rotor bar material (copper vs. aluminum alloy), and thermal mass to ensure the motor operates reliably without thermal degradation during intense duty cycles.
Every OEM TEFC motor undergoes strict quality assurance per IEC 60034 and IEEE 112 standards. Standard Factory Acceptance Testing includes winding resistance measurement, high-potential (Hi-Pot) insulation breakdown testing, surge testing, no-load current & power measurement, rotor balance verification, and noise level monitoring. Full load performance curves, temperature rise tests, and dynamic vibration spectral analyses are available upon request for customer inspection sign-off.
Connect directly with our senior application engineers to discuss custom frame modifications, IE3/IE4 energy compliance, hazardous area certifications, and factory-direct volume pricing.
